KTH500 T&RH Transmitter

Home> Products>HUMIDITY>KTH500 T&RH Transmitter

KTH500 T&RH Transmitter

KTH500 temperature and humidity transmitters can be used to measure relative humidity and temperature in various HVAC applications, as well as monitor building energy management systems. This series of products includes duct-mounted transmitters, IP65 protection wall-mounted transmitter.

KTH500 uses a new generation of digital sensors, with a humidity accuracy of 2%, a temperature accuracy of 0.3°C, harsh environment testing, aging testing and accuracy calibration before shipment to make the detection data more accurate and stable.


Features

1.LCD display-Large size backlight display

2.Shell connected by hinge-More convenient wiring and setting

3.M16 M20 double cable gland -Cable size φ5…12mm

4.Smooth and flflat surface-Prevent the pollution of the shell surface in harsh environment

5.IP65/NEMA4

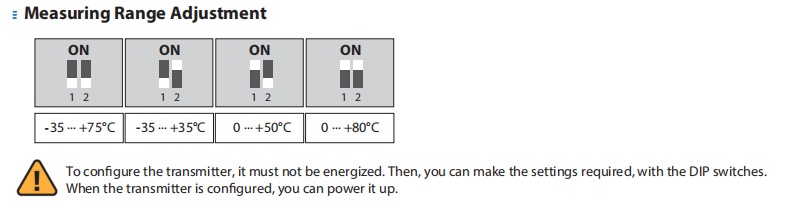

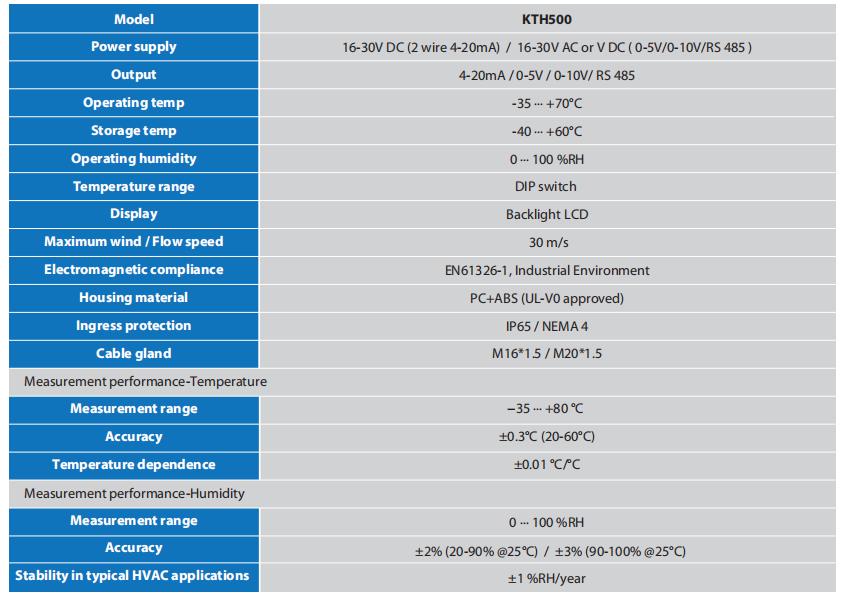

Technical Data

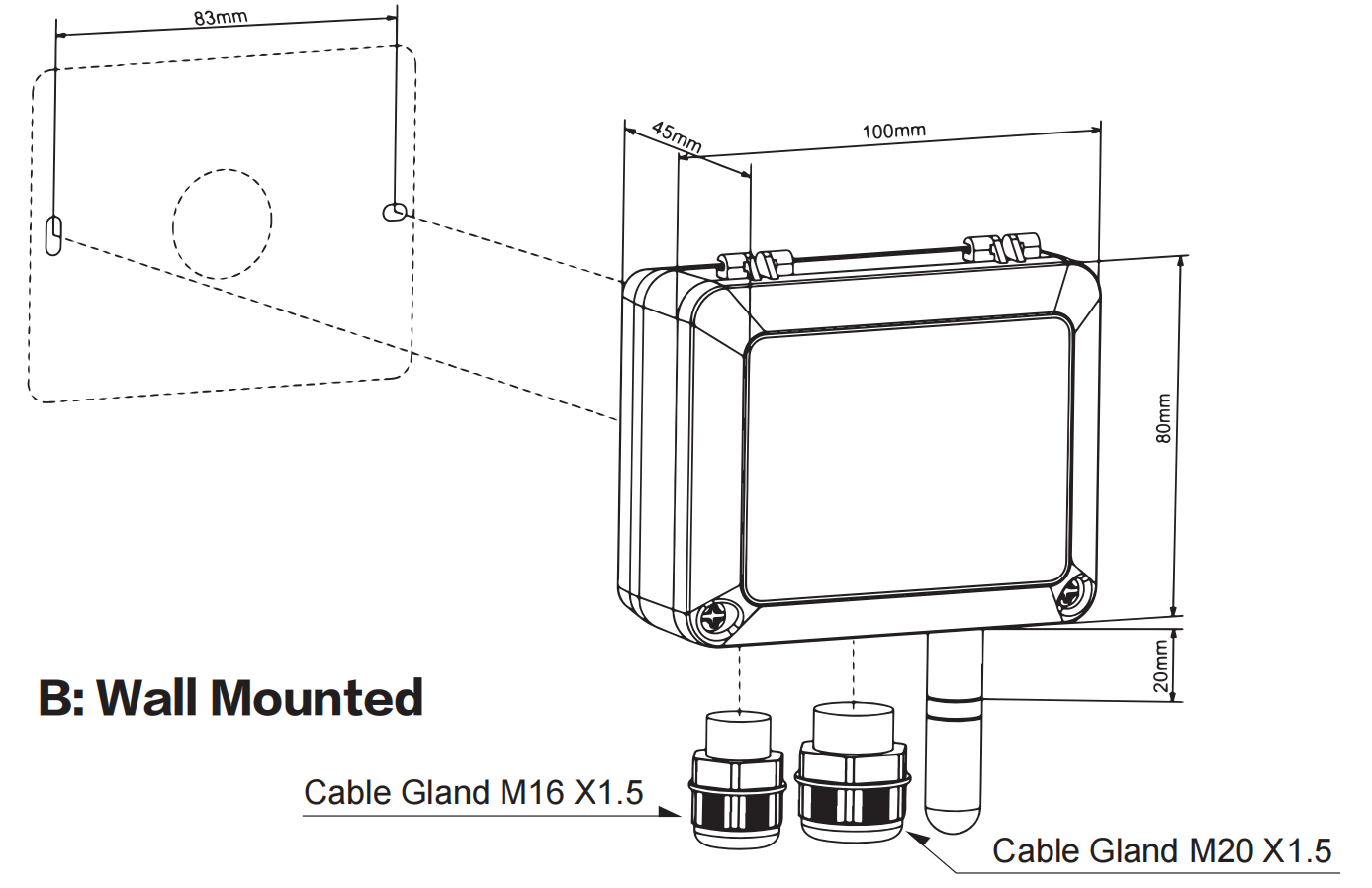

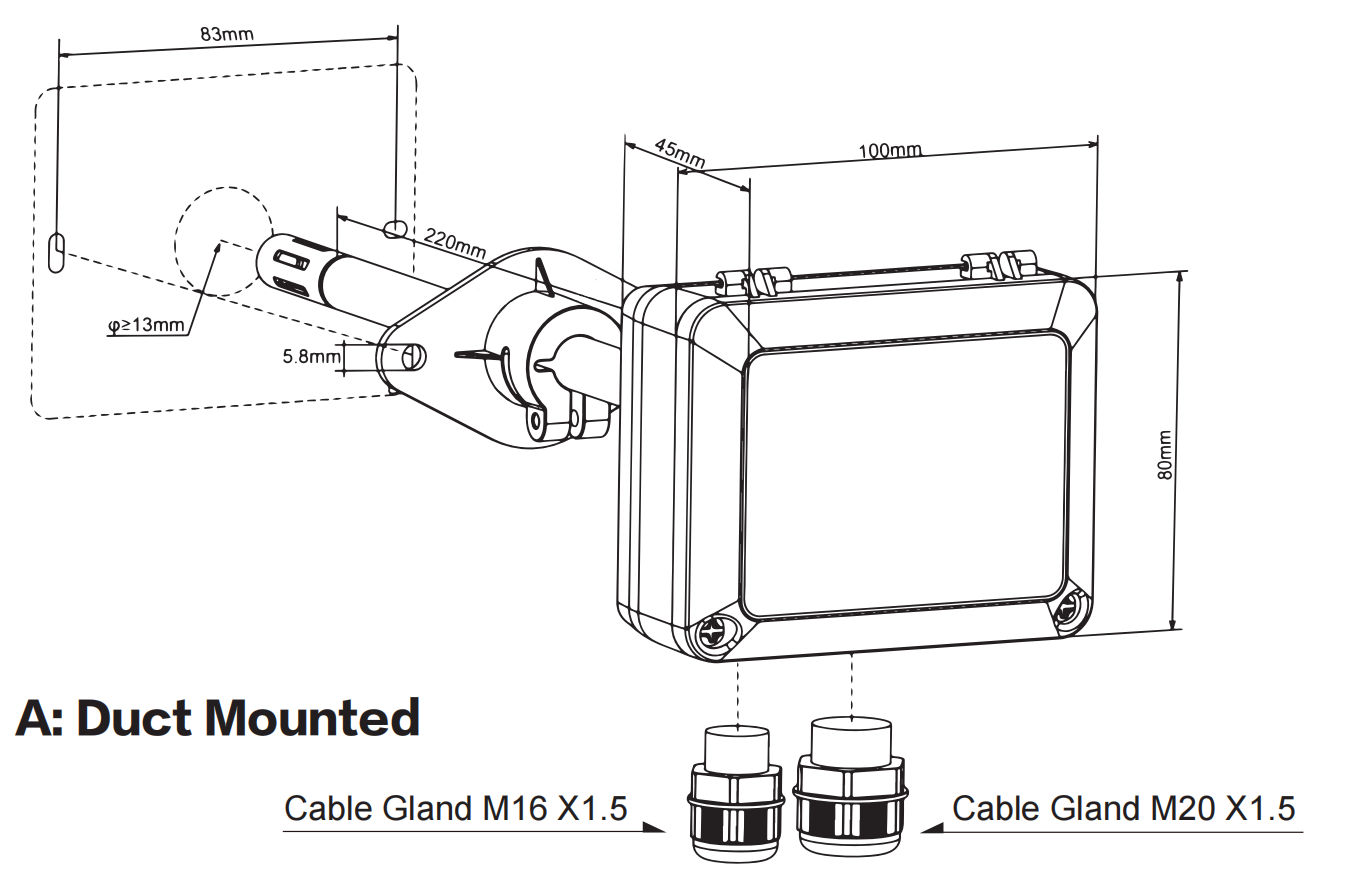

Product Dimensions

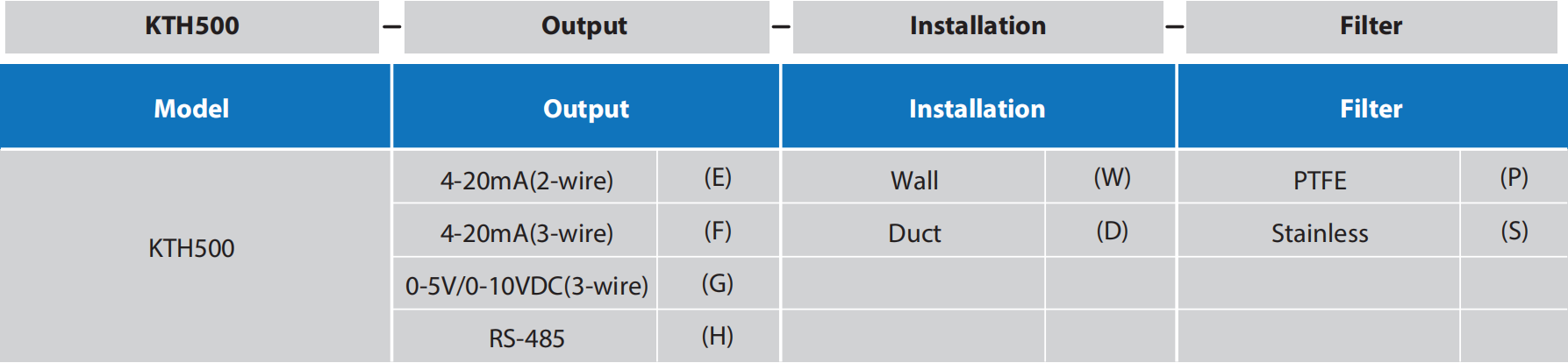

Ordering Guide
