KTT110 Series Temperature Transmitter
KTT110 series duct mounted transmitter is a low-cost temperature transmitter specially designed for temperature measurement in HVAC field. It is suitable for building equipment automatic control system (BA system) of commercial buildings and other conventional buildings. IP65 protection grade is convenient for outdoor measurement at the same time. The output model of the transmitter is standard 4-20mA, 0-10V, and RS 485 output mode can also be selected.
Features
Range from -40 to +200°C
4-20mA, 0-10V, 0-5V, RS-485 output
Standard accuracy ±0.3°C
Protection class: IP65 / NEMA 4

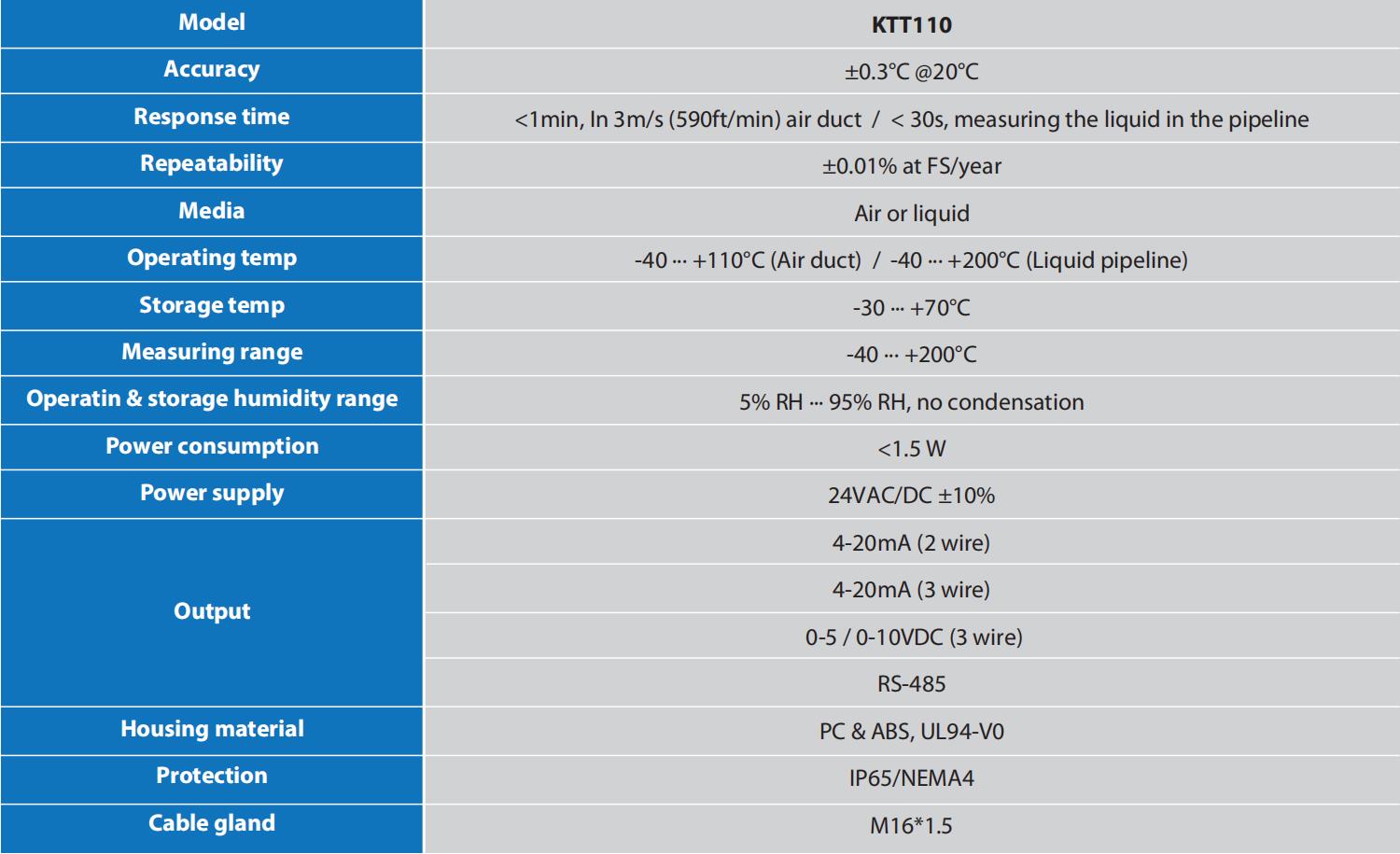

Technical Data

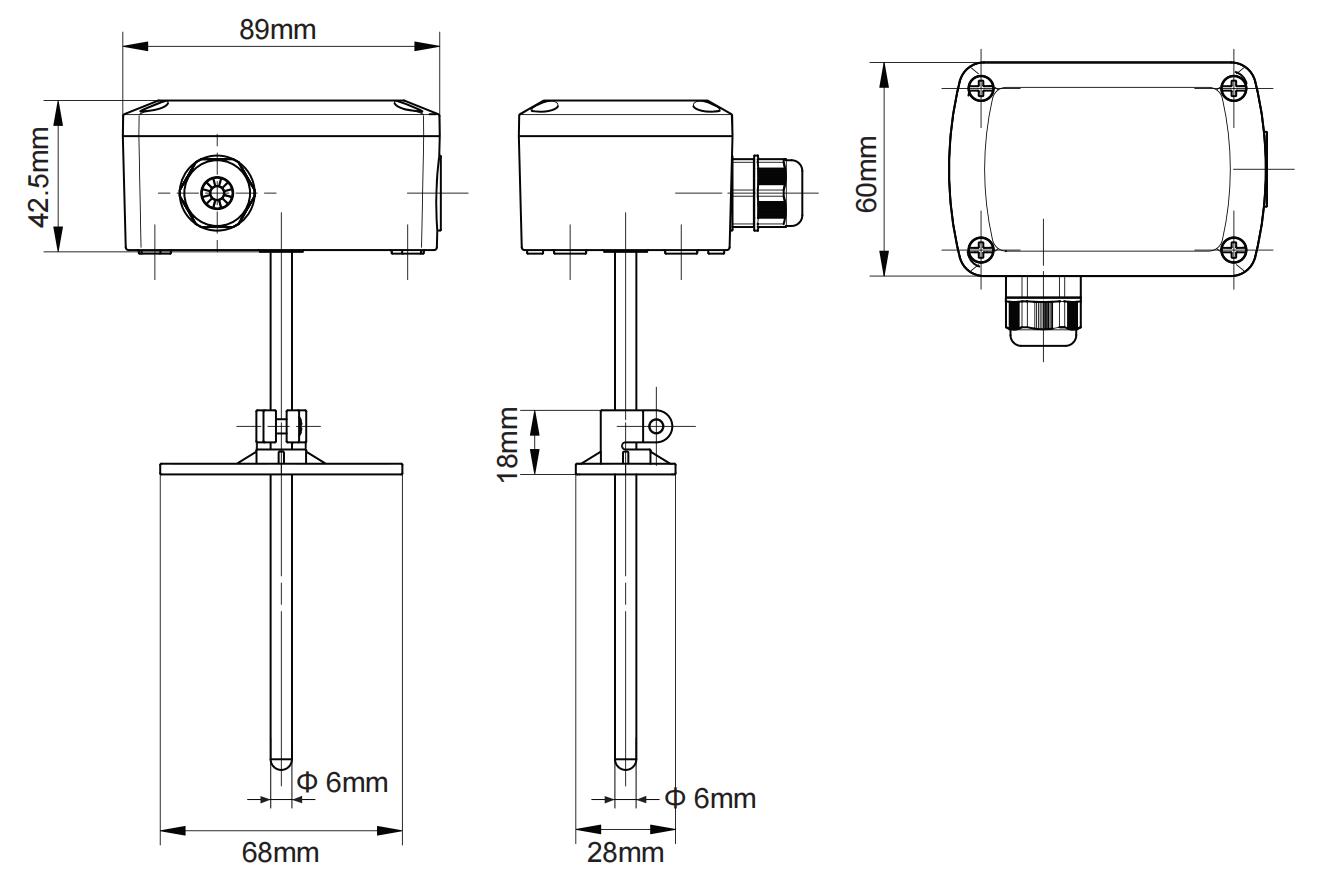

Product Dimensions

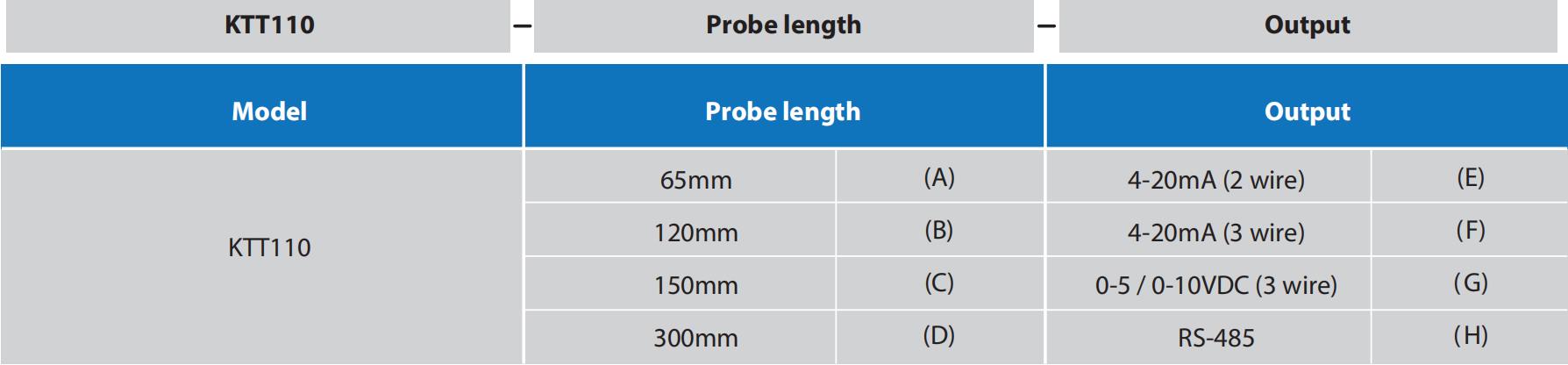

Ordering Guide
