KTT120 Series Temperature Transmitter
KTT120 series cable transmitter is a low-cost temperature transmitter specially designed for temperature measurement, which is suitable for temperature measurement under various working conditions. It can measure the temperature in the air duct and liquid pipeline through different installation and fixed accessories. The output model is standard 4-20mA, 0-10V, and RS 485 output mode can also be selected.
Features
Range from -40 to +200°C
4-20mA, 0-10V, 0-5V, RS-485 output
Standard accuracy ±0.3°C
Protection class: IP65 / NEMA 4

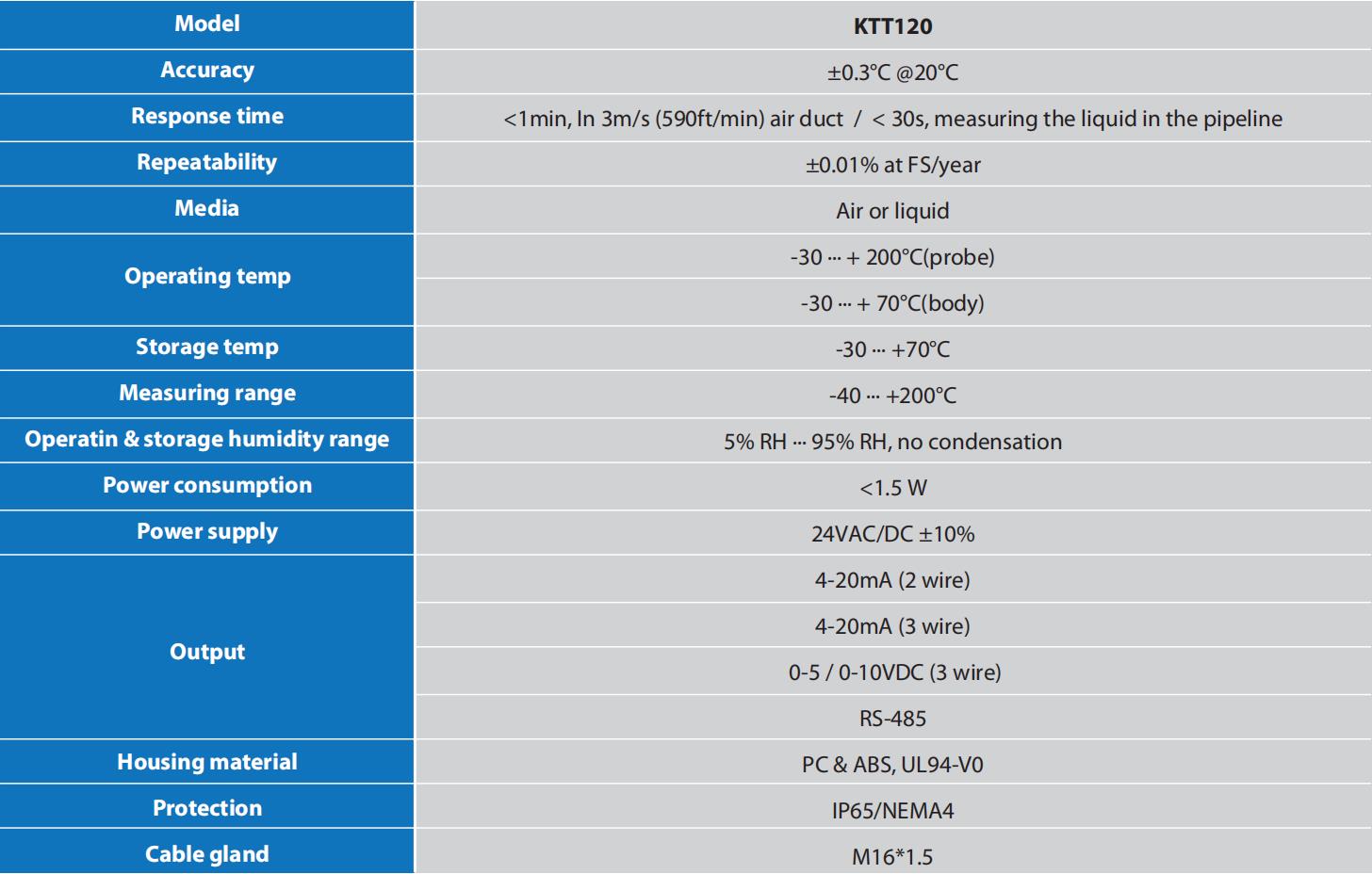

Technical Data

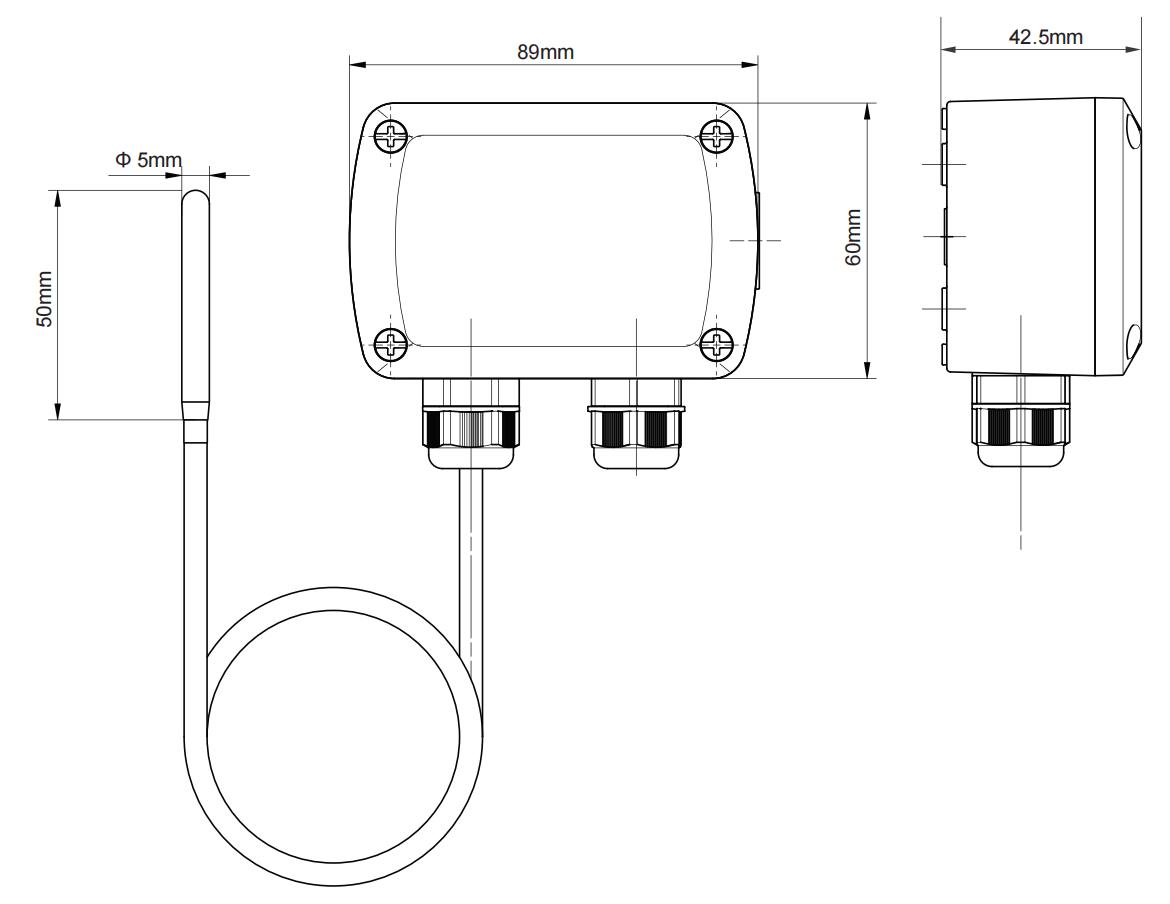

Product Dimensions

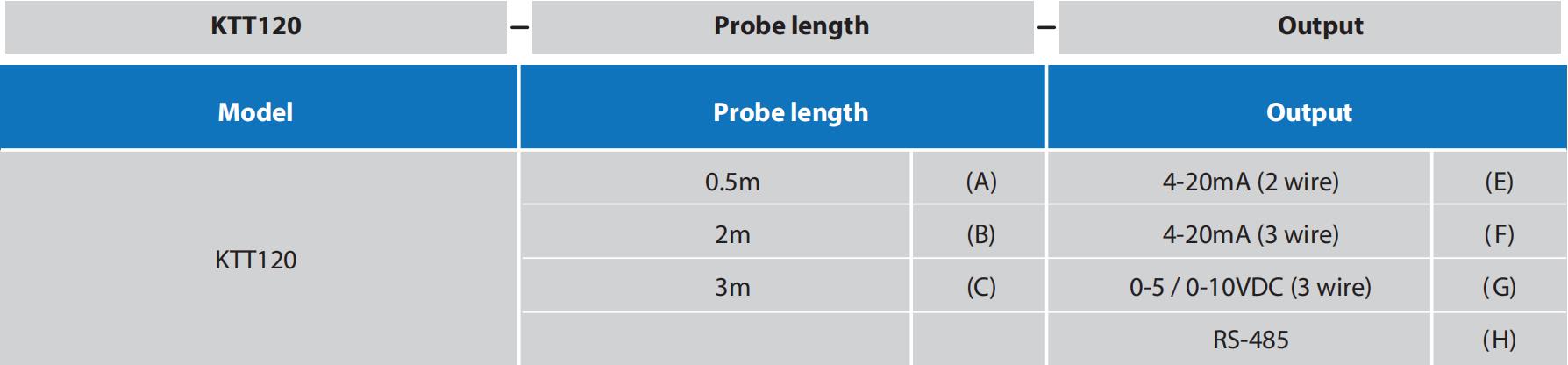

Ordering Guide
