KDP110 Series DPT

Home> Products>PRESSURE>KDP110 Series DPT

KDP110 Series DPT

KDP110 differential pressure transmitter has the characteristics of high accuracy, ultra-low adjustable range and fast response. It is widely used in the clean rooms of electronic and pharmaceutical factories, as well as the automatic control system of commercial buildings, HVAC air conditioning processor system,  medical centers and transportation hubs.

Features

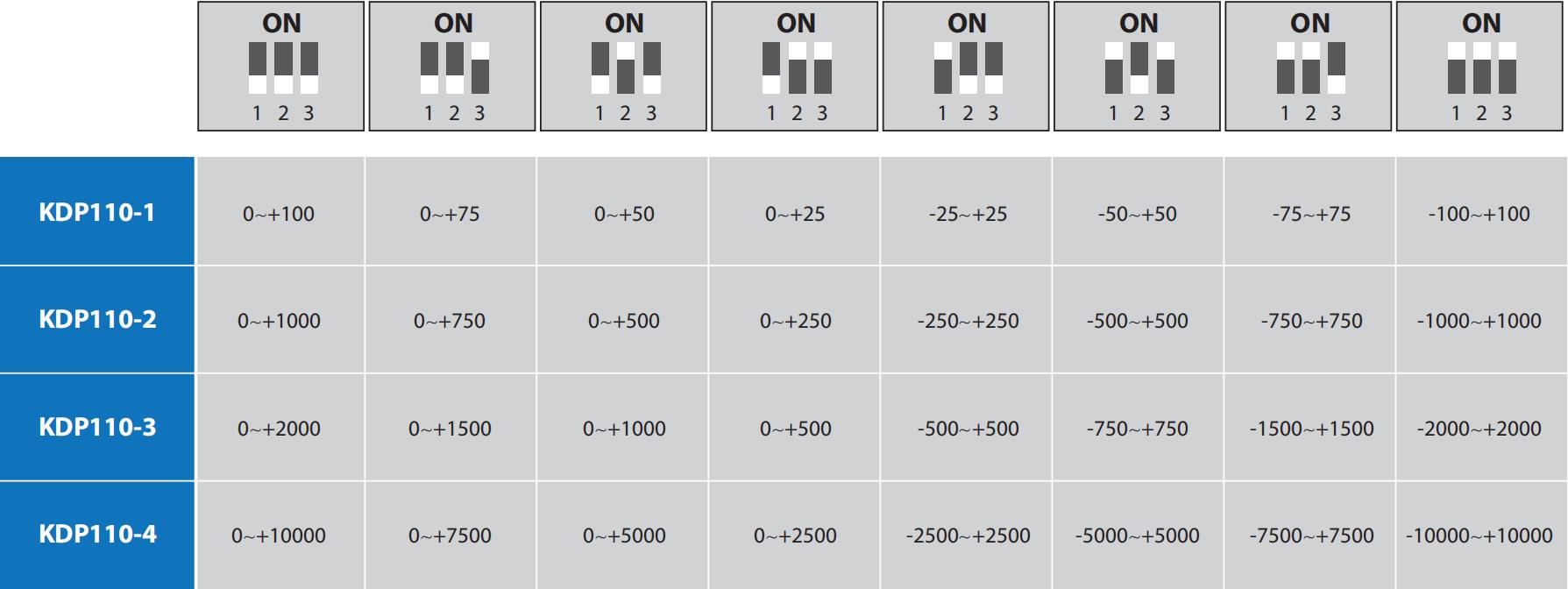

1.Ranges from -25/+25Pa to -10000/+10000Pa (according to models)

2.Auto zero manual calibration

3.Voltage, current, digital signal output

4.Standard accuracy <±1% FS

5.IP65 house protection

Specifications

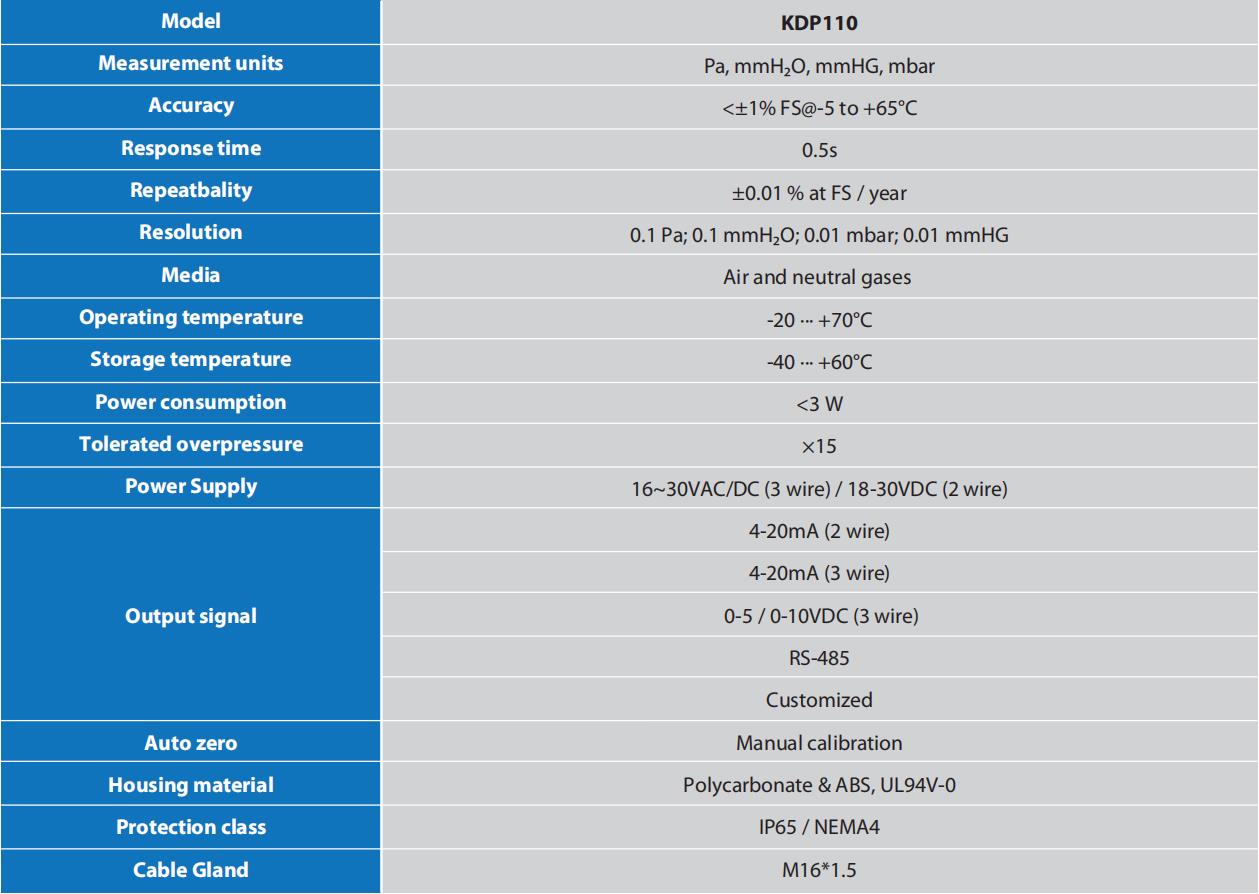

Technical Data

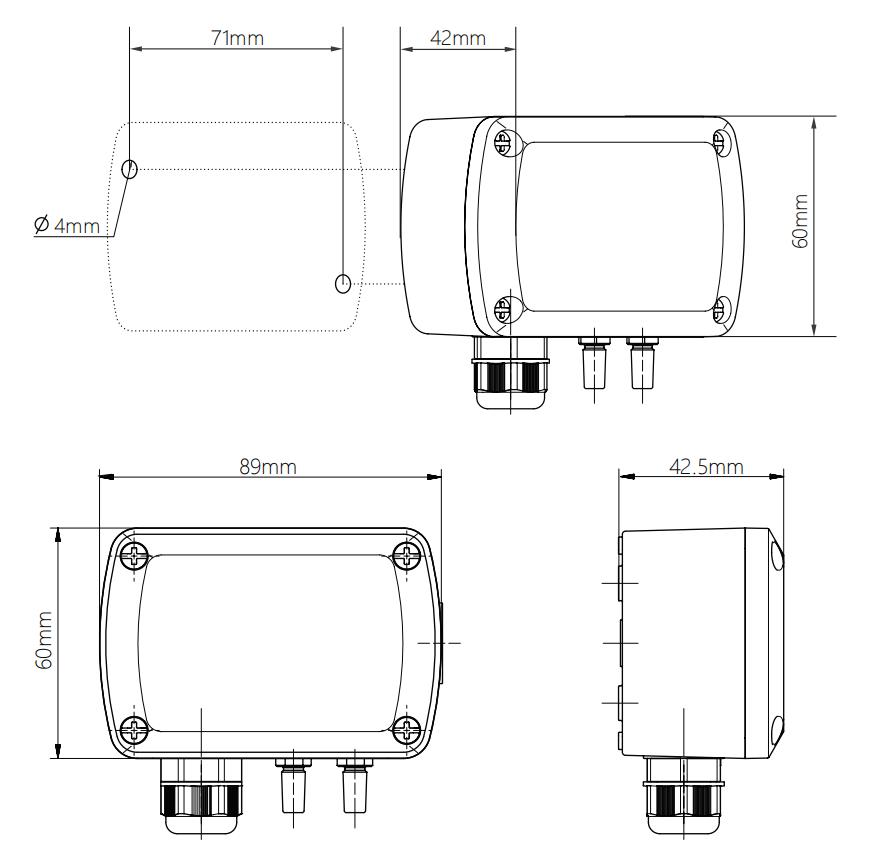

Product Dimensions

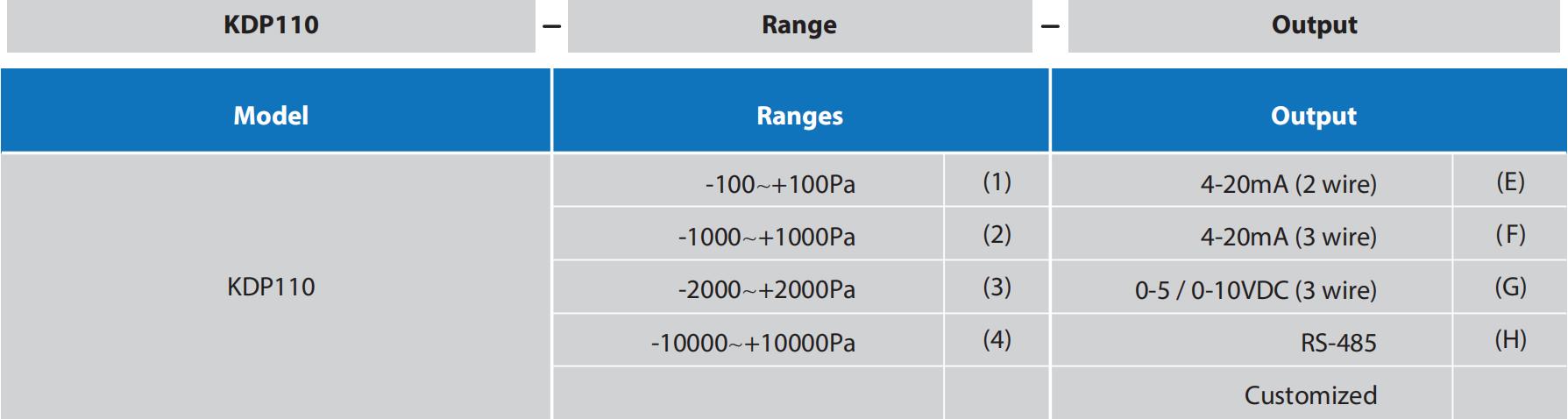

Ordering Guide
