KDP210-MOD Series DPT

Home> Products>PRESSURE>KDP210-MOD Series DPT

KDP210-MOD Series DPT

The KDP210-MOD differential pressure transmitter has high precision, ultra-low &

adjustable range, fast response characteristics, widely used in clean electronics and

pharmaceutical factories, as well as large commercial buildings, medical centers

and transportation hub.

Features

1.Ranges from -25/+25Pa to -10000/+10000Pa (according to models)

2.Auto zero manual calibration

3.Voltage, current, digital signal output

4.Backlight LCD display

5.Standard accuracy <±1% FS

6.Adjusting measurement time by setting button

7.External mounting holes

8.Mounting with closed cover

9.Easy & fast mounting

10.IP65 house protection

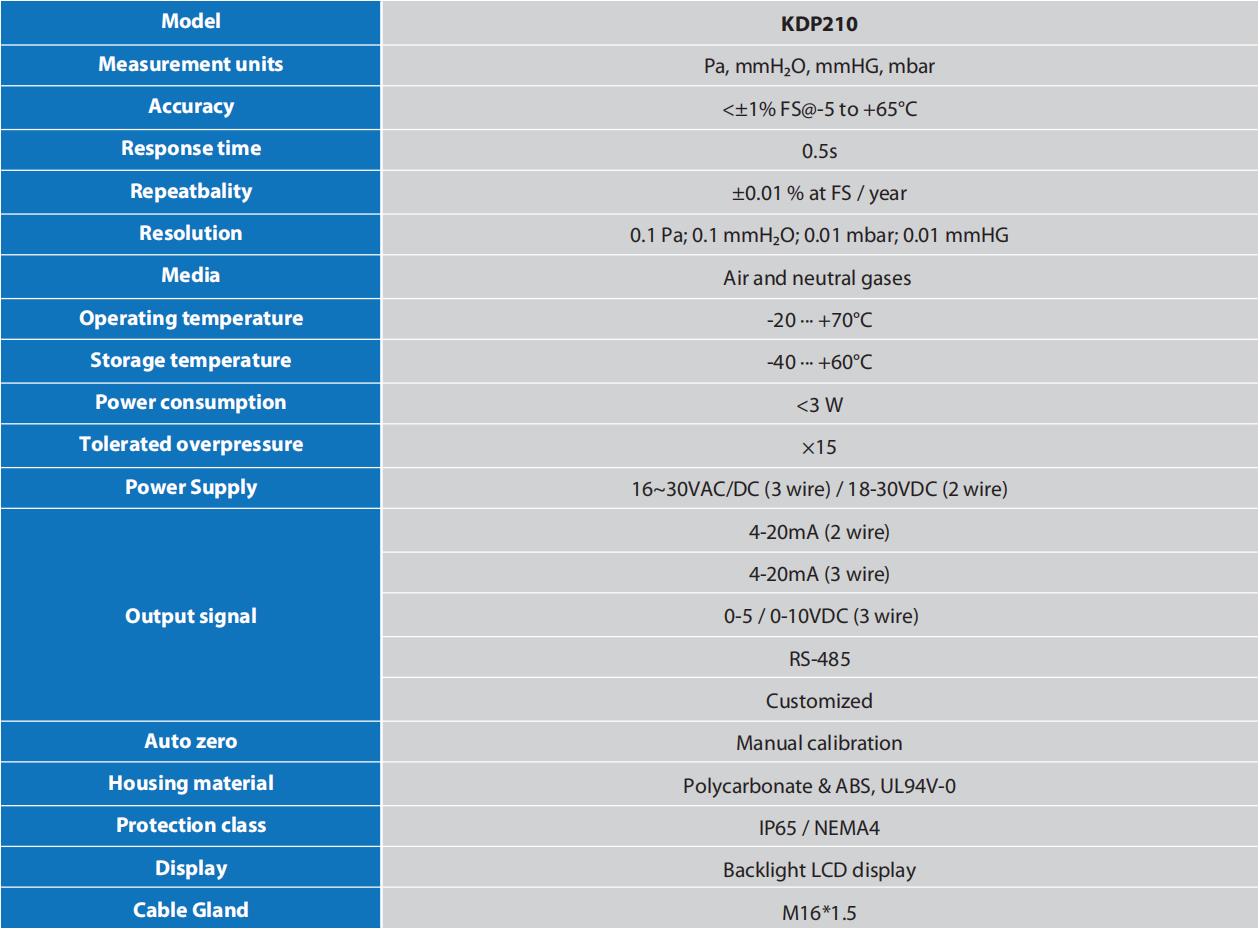

Technical Data

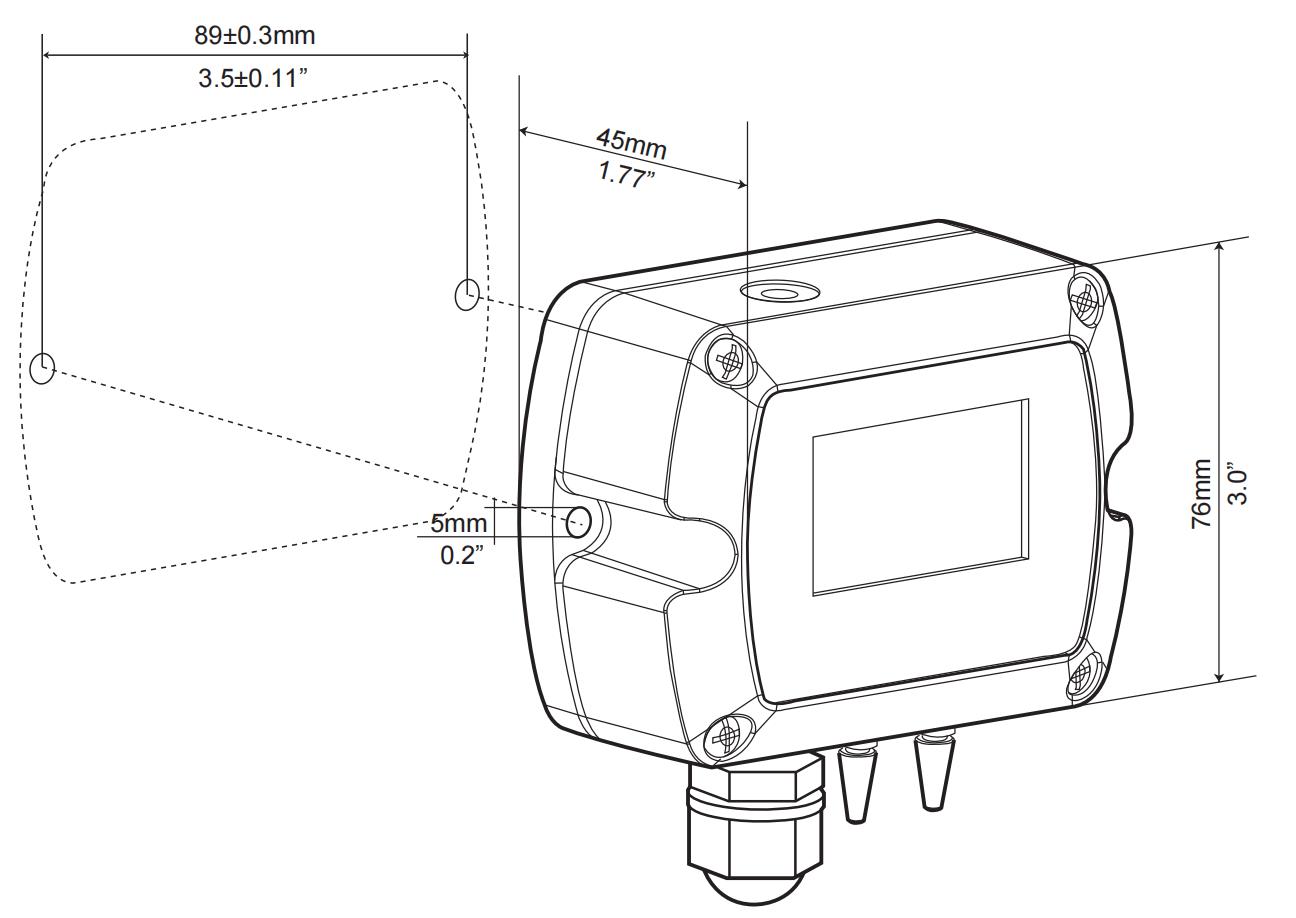

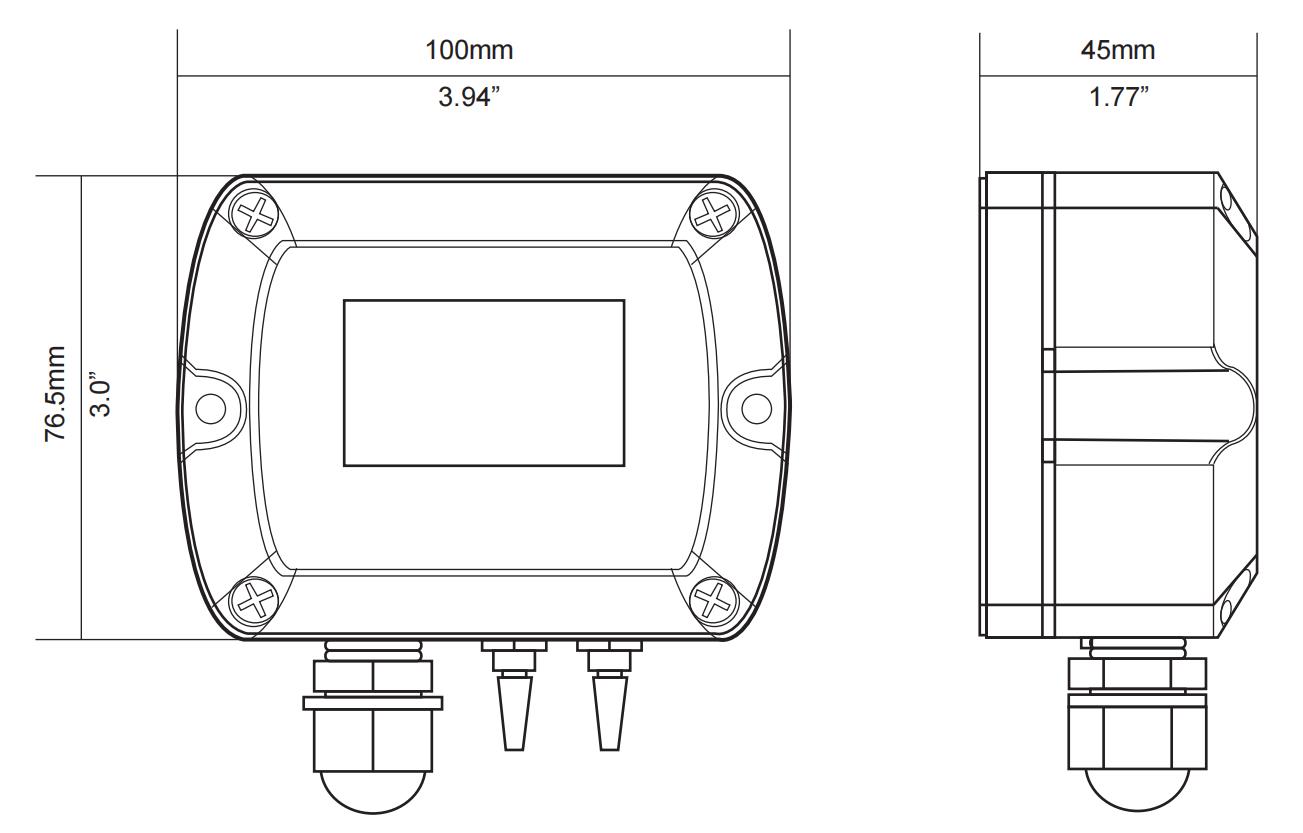

Product Dimensions

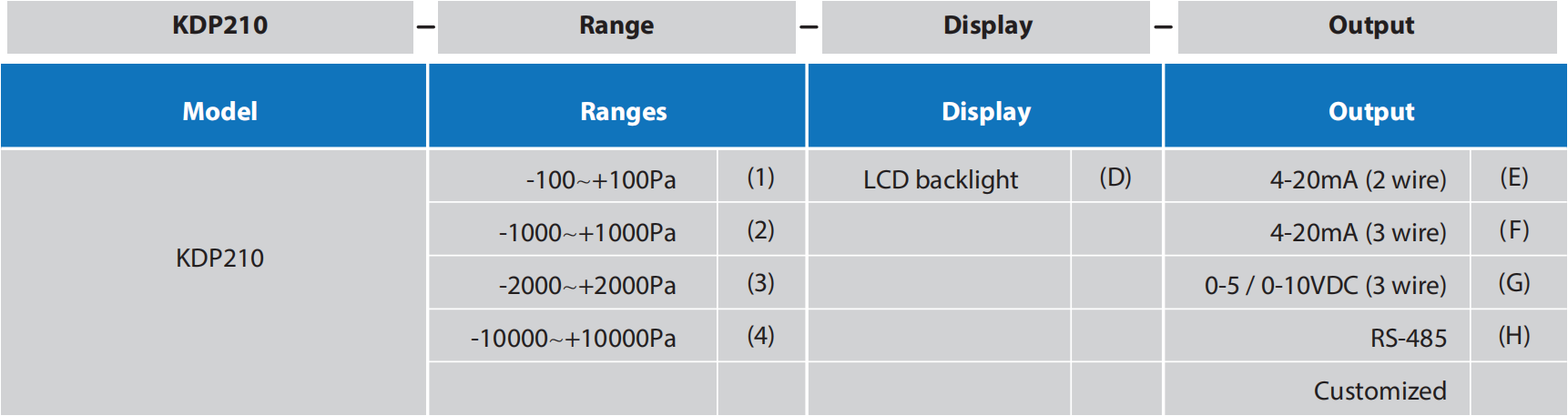

Ordering Guide
