Features
1.Q series single pressure controls can be not only used in fluoridated
refrigerant, but also in the air and liquid(allowed liquid temp. -20 to 120°C)
2. Ambient working temp: -20°C~70°C

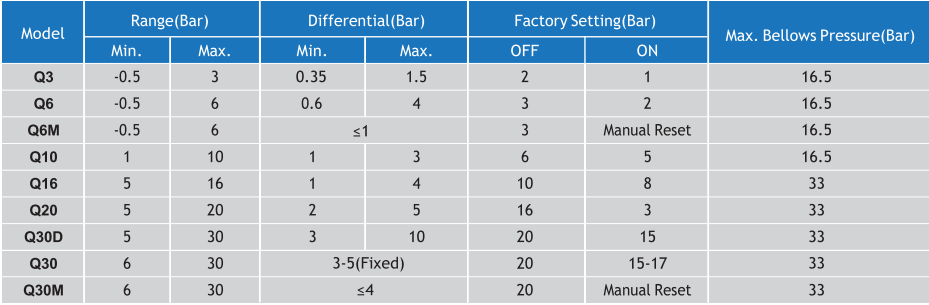

3. Adjustable range and differential settings
4. Renovated SPDT micro-switch ensures the reliable switch function

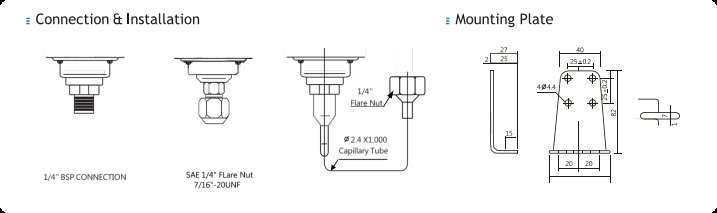

5. Flexible mounting bracket suits various kinds of application
6. Upper lid is optional (IP44)
7. Various connections are available on request
8. Automatic and manual reset version
9. The material of bellows is copper and pressure interface is brass
10. Several models available in drip-proof enclosure for marine applications or in
explosion-proof enclosure for special applications CE approval
